Description

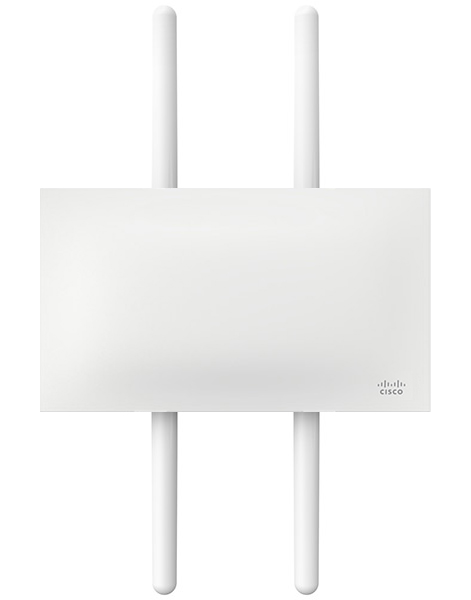

Meraki MR84 Cloud Managed AP

Ideal use cases

• High-density and challenging RF stadium, arena, and open-air deployments
• Harsh, rugged, and outdoor environments
• Voice, video, and performance-intensive networks

Hardware features

• IP67 rated, tested for dust, shock, vibration, and moisture
• 4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS and Bluetooth Low Energy (BLE)
• 4-stream 802.11ac, 160MHz channels, up to 2.5 Gbps dual-aggregate throughput
• 1 x Gigabit Ethernet port, 1 x Multigigabit Ethernet port, PoE: 802.3at

Cloud management

• Network-wide visibility and control
• Self-provisioning for rapid deployment
• Automatic reporting
• Seamless firmware updates

Enterprise security

• 802.1X and native Active Directory integration
• Air Marshal: real-time WIPS with forensics
• Stateful Layer 3-7 firewall
• Identity-based group policies
• Built-in antivirus scan (NAC)

Guest access

• 1-click secure guest access
• Guest isolation firewall
• Customizable splash pages
• Integrated Facebook WiFi login

RF optimization

• Dual-concurrent radios with MU-MIMO support, radios optimized for rate-vs-range performance
• Third radio dedicated to security and RF management
• Built-in real-time RF specturm view
• Cloud-based, automatic RF optimization

Layer 7 traffic shaping

• Classifies hundreds of applications
• Create per-application bandwidth limits
• Prioritize productivity apps
• Restrict recreational traffic

Location Analytics

• Measure visitor capture rate, visit length, and repeat visit rate
• Measure visitor trends over time and compare performance across locations
• Enable location services through integrated iBeacon functionality
